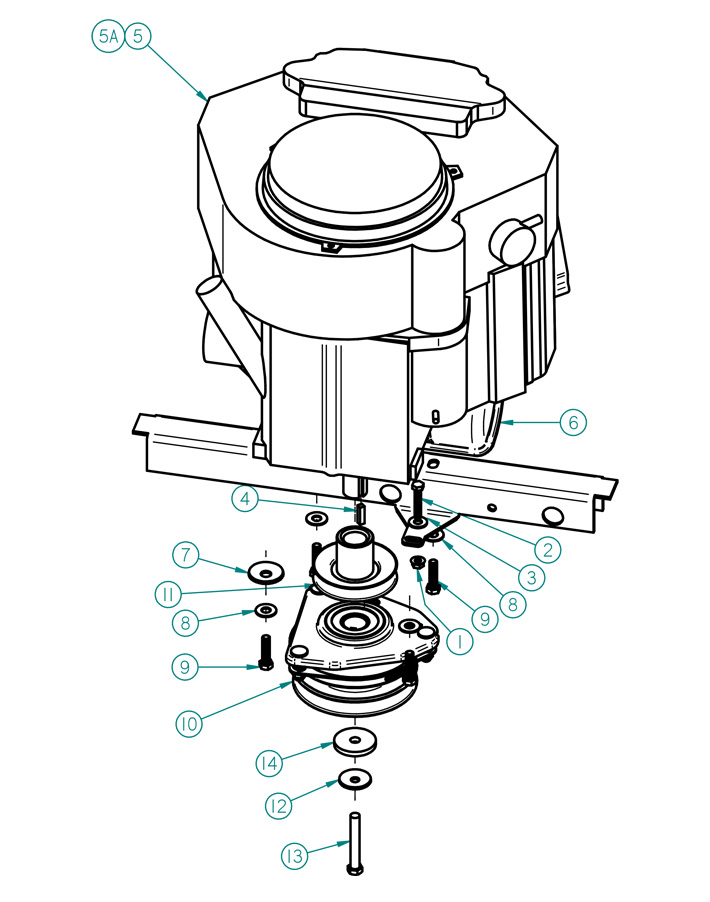

Dixie Chopper 2013 Zee 2 Mower Engine and Drive Pulley Parts

Part No.

Description

N-103-W

5/16in.-18 Whiz Flange Nut N-103-W

B-105

Bolt-5/16-18x1-3/4 HHCS FT Gr.5, Clear Zinc

W-113

5/16in. Flat Washer W-113

K-103

1/4in. X 1in. Long Key K-103

DUP-600450

ENGINE-KAWASAKI 21.5HP FR651V

600451

Engine - Kawasaki 23HP, FR691V

600449

Muffler-Kawasaki, Small Block

W-158

Washer - 1/2ID x 1-5/8OD Tooth Bellville

Part No.

Description

W-104

3/8in. Flat Washer W-104

B-158

Bolt-3/8-16x1-1/2 HHCS PT Gr. 5, Clear Zinc

500144

Clutch-Ogura GT1A-EH01

301088

Pulley-3.713 EDA x 1.125 Bore

W-144

Washer - 7/16 SS Bellville

B-216

Bolt - 7/16-20X3 HHCS PT Gr.8 Zinc B-216

600422

Spacer-.460IDX2.00ODX.25TH, Clear Zinc

Products (Total Items: 11)

Sort by:

Dixie Chopper W-104 WASHER,FLAT 0.063"THK-CLR ZINC

Part Number:W-104

Specs: 3/8in.

Model: 2044 (2008), 2250 (2012), 2344 (2009), 2344 (2010), 2344 (2011), 2350 (2008), 2350 (2009), 2350 (2010), 2460 (2012), 2560 (2008) and many more

View More Details

$4.04

Dixie Chopper K-103 KEY-1/4X1 SQUARE

Part Number:K-103

Specs: 1/4'' / 1''

View More Details

$4.04

Dixie Chopper N-103-W NUT,FLANGE WHIZ 5/16-18 GR.5

Part Number:N-103-W

Specs: 5/16in.-18

Model: 2044 (2008), 2344 (2009), 2344 (2010), 2344 (2011), 2350 (2008), 2350 (2009), 2350 (2010), 2560 (2008), 2560 (2009), 2560 (2010) and many more

View More Details

$4.04

Dixie Chopper W-113 WASHER-5/16X7/8X.08 FLAT

Part Number:W-113

Specs: 5/16in.

Model: 2044 (2008), 2250 (2012), 2344 (2009), 2344 (2010), 2344 (2011), 2350 (2008), 2350 (2009), 2350 (2010), 2460 (2012), 2560 (2008) and many more

View More Details

$4.04

Dixie Chopper B-216 BOLT-7/16-20X3 HHCS PT GR.8

Part Number:B-216

Specs: 7/16"-20 / 3"

Model: 2044 (2008), 2250 (2012), 2344 (2009), 2344 (2010), 2344 (2011), 2350 (2008), 2350 (2009), 2350 (2010), 2460 (2012), 2560 (2008) and many more

View More Details

$4.04

Dixie Chopper 301088 Engine PULLEY-3.713 EDA X 1.125 BORE

Part Number:301088

Specs: 3.713 EDA / 1.125 Bore

View More Details

$56.58

Dixie Chopper 500144 CLUTCH-OGURA GT1A-EH01

Part Number:500144

View More Details

$208.03

Dixie Chopper B-105 BOLT-5/16-18X1-3/4 HHCS FT GR.

Part Number:B-105

Specs: 5/16"-18 / 1-3/4"

Model: 2044 (2008), 2344 (2009), 2344 (2010), 2344 (2011), 2350 (2008), 2350 (2009), 2350 (2010), 2560 (2008), 2560 (2009), 2560 (2010) and many more

View More Details

$4.04

Dixie Chopper B-158 BOLT-3/8-16X1-1/2 HHCS PT GR.

Part Number:B-158

Model: 2250 (2012), 2460 (2012), Classic 2750 T (2012), Classic 2750 W (2012), Classic 2760 T (2012), Classic 2760 W (2012) and many more

View More Details

$4.04

Dixie Chopper W-144 WASHER,BELLEVILLE 7/16 SS

Part Number:W-144

Model: 2044 (2008), 2250 (2012), 2344 (2009), 2344 (2010), 2344 (2011), 2350 (2008), 2350 (2009), 2350 (2010), 2460 (2012), 2560 (2008) and many more.

View More Details

$8.99

Dixie Chopper W-158 WASHER,TOOTH BELL

Part Number:W-158

Model: 2250 (2012), 2460 (2012), Classic 2750 T (2012), Classic 2750 W (2012), Classic 2760 T (2012), Classic 2760 W (2012) and many more.

View More Details

$5.79
